GS1000B
HM
Aluminum Frame
Availability: | |
---|---|
Popular modern design large opening double glazed aluminum insulated folding door
Welcome a trial order!
Contact us at any time!
Model No.: GS1000B

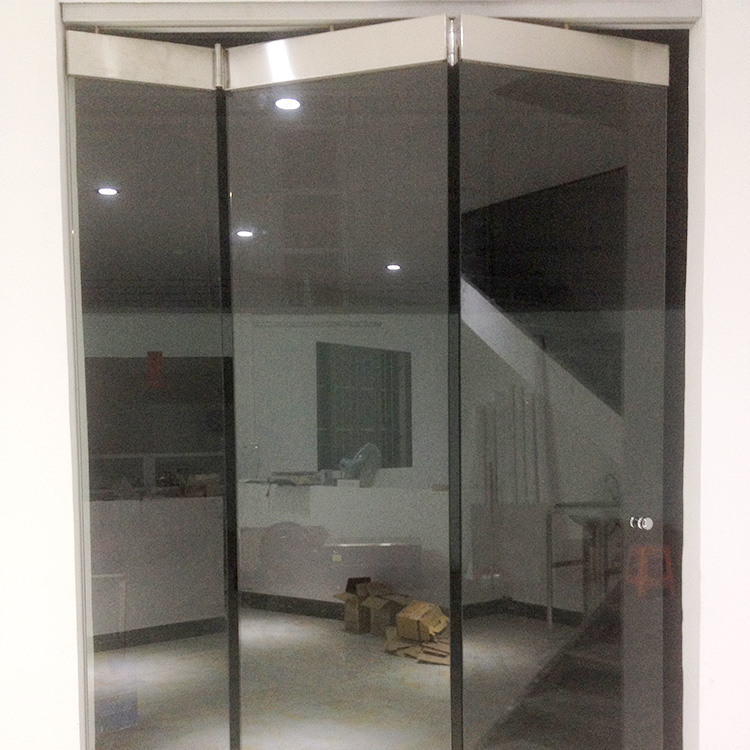

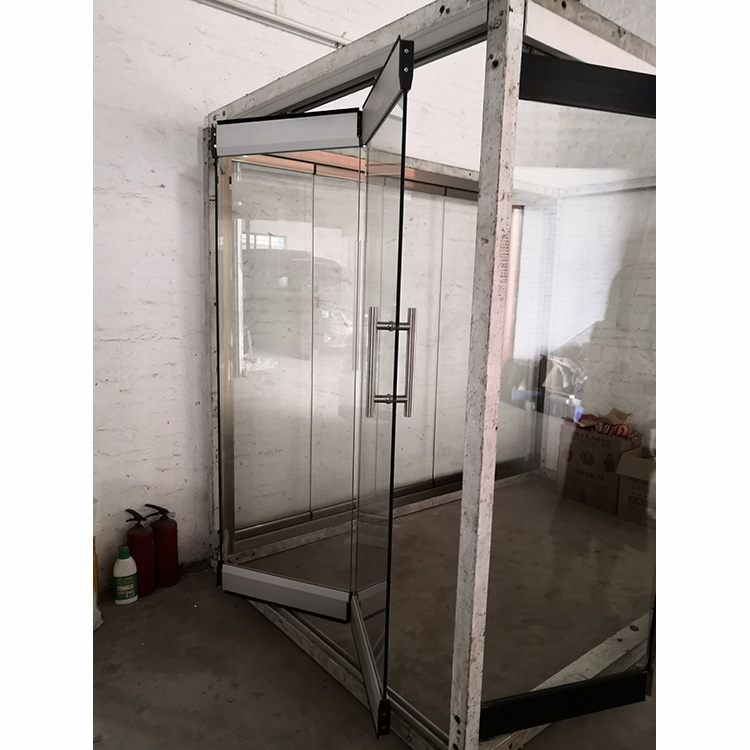

Frameless folding sliding door
Brand Name | ECH |
Model No. | GS1000B |
System name | Sliding folding door |
Material | Aluminium + Stainless steel |
Finished | Polished and stain |
Glass thickness | 8-12mm single clear tempered glass |
Max. capacity for roller | 45kg |
Installation | Configuration briefness and easy to install |
Package | Standard packaging without any logo, can adjust customers request |
Payment terms | T/T 30% deposit advanced, balanced before shipping |
Delivery time | Usually within 10 days after receiving deposit |
Model No. | GS1000B | Bearing grade | CV2 |
Application | Suitable for glass partition | Glass clamp cut size(mm) | 100*30 |
Function | middle folding,each door width is same except the first fixed door | Glass clamp material | Aluminium 6063-T5 & 304 stainless steel |
Max door leaf height(mm) | 3500 | Glass clamp finishes | A) Polished stainless steel B) Satin stainless steel C) Titanium |
Max door leaf width(mm) | 1200 | Hinge size(mm) | 100*92.5*4 |
Max door leaf load(kg) | 120 | Hinge material | 304 stainless steel |
Glass thickness(mm) | 10; 12; 12.7 | Hinge finish | SSS/PSS/customise |

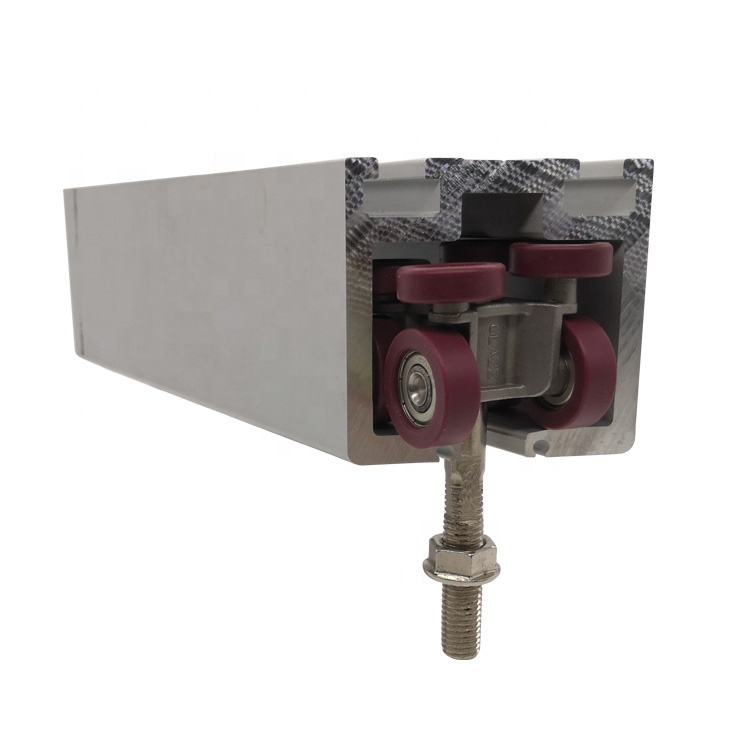

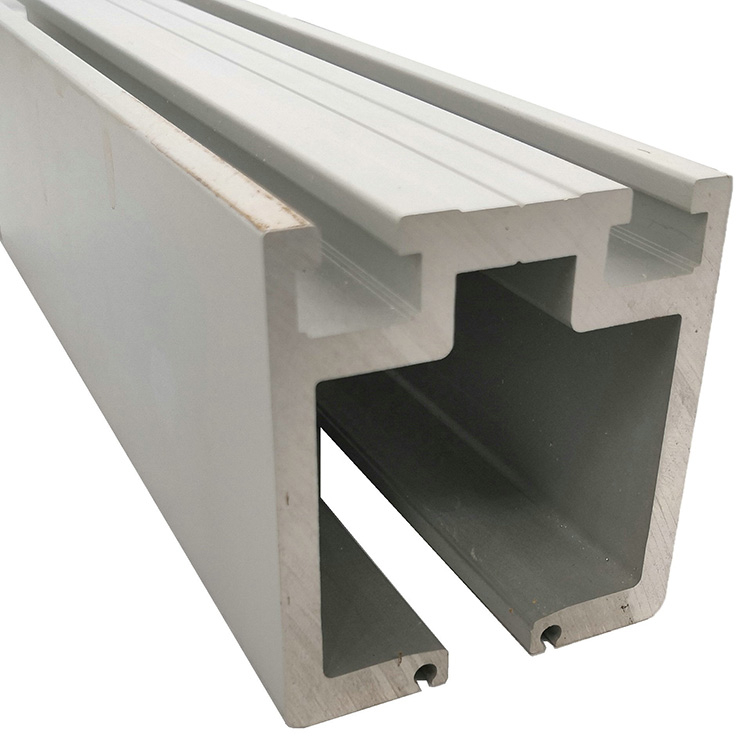

Top track size(mm) | 72*78 | End cap material | 304 stainless steel |
Top track thickness(mm) | 8 | End cap finish | SSS/PSS/customise |
Top track material | Aluminum 6063-T5 | PVC seal | Optional |
Top track finish | Anodizing matt silver | Lock | Optional |

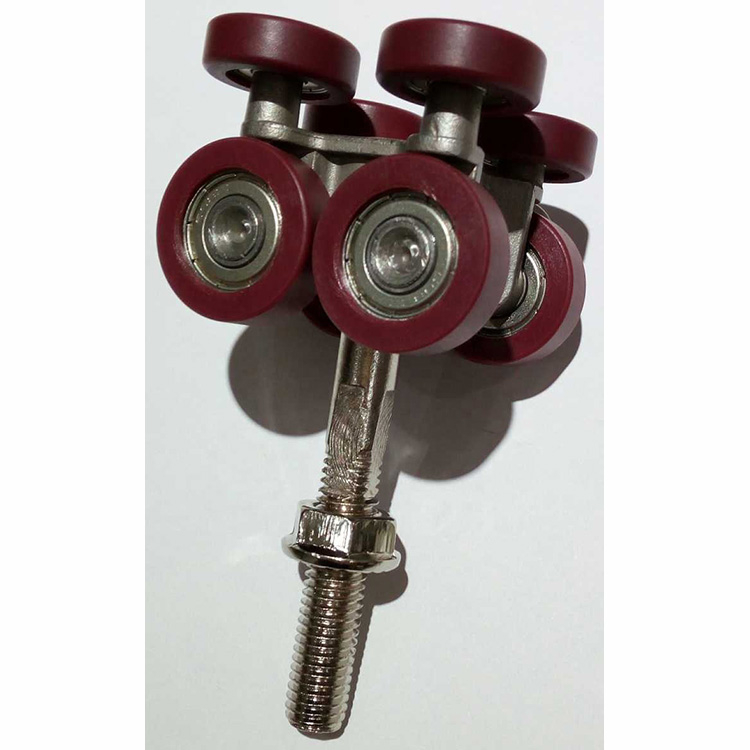

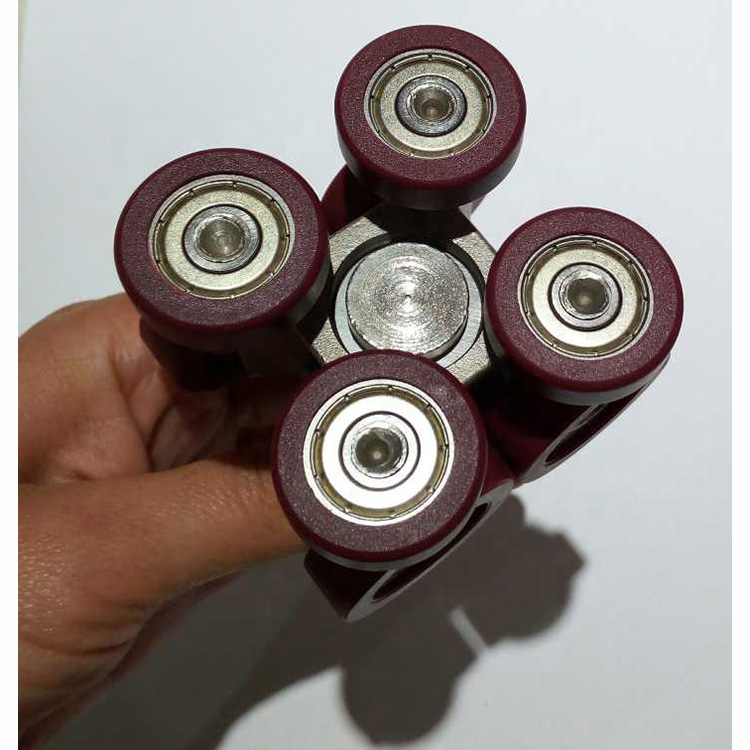

Roler material | 304 stainless steel | Lacth | Optional |
Customized design exterior frameless bi-fold glass folding door with hardware
Popular modern design large opening double glazed aluminum insulated folding door
We can sell complete set with glass, or only hardware accessories.
Product packaging
Simple Design Interior Glass Sliding Folding Door with 12mm Tempered Glass
Welcome a trial order!
Contact us at any time!
Model No.: GS1000A
Frameless folding sliding door
Brand Name | HM |
Model No. | GS1000A |
System name | Sliding folding door |
Material | Aluminium + Stainless steel |
Finished | Polished and stain |
Glass thickness | 8-12mm single clear tempered glass |
Max. capacity for roller | 45kg |
Installation | Configuration briefness and easy to install |
Package | Standard packaging without any logo, can adjust customers request |
Payment terms | T/T 30% deposit advanced, balanced before shipping |
Delivery time | Usually within 10 days after receiving deposit |
Popular modern design large opening double glazed aluminum insulated folding door
We can sell complete set with glass, or only hardware accessories.
Product packaging
Top Sponsor Listing Folding Doors Folding Factory Make Large Opening Insulated Soundproof Interior Aluminum Glass Bi Folding Narrow Bi Fold Doors
Welcome a trial order!
Contact us at any time!
School sliding movable partition wall folding doors for classrooms | |
Product Name | ECH fordable door system F80 |
Material | Anodized aluminum frames structure with insulation glass and floor and top track system |
Function | Smooth operation for opening and folding ,sound ,heat insolation and water proof |
Package | Strengthen paper carton and plywood case |
Products Advantages
ECH foldable door mechanical parts are all hidden in the profile cavity, with uniform pressure and smoother opening; it solves the problem that most of the ordinary foldign door may not smooth due to the exposed mechanical parts and the ash in the track may damages the pulley. Ou hinge is installed in the profile cavity with better stress, simple appearance and Enhance
Project Cases
Popular modern design large opening double glazed aluminum insulated folding door
Welcome a trial order!
Contact us at any time!
Model No.: GS1000B
Frameless folding sliding door
Brand Name | ECH |
Model No. | GS1000B |
System name | Sliding folding door |
Material | Aluminium + Stainless steel |
Finished | Polished and stain |
Glass thickness | 8-12mm single clear tempered glass |
Max. capacity for roller | 45kg |
Installation | Configuration briefness and easy to install |
Package | Standard packaging without any logo, can adjust customers request |
Payment terms | T/T 30% deposit advanced, balanced before shipping |
Delivery time | Usually within 10 days after receiving deposit |
Model No. | GS1000B | Bearing grade | CV2 |
Application | Suitable for glass partition | Glass clamp cut size(mm) | 100*30 |
Function | middle folding,each door width is same except the first fixed door | Glass clamp material | Aluminium 6063-T5 & 304 stainless steel |
Max door leaf height(mm) | 3500 | Glass clamp finishes | A) Polished stainless steel B) Satin stainless steel C) Titanium |
Max door leaf width(mm) | 1200 | Hinge size(mm) | 100*92.5*4 |
Max door leaf load(kg) | 120 | Hinge material | 304 stainless steel |
Glass thickness(mm) | 10; 12; 12.7 | Hinge finish | SSS/PSS/customise |
Top track size(mm) | 72*78 | End cap material | 304 stainless steel |
Top track thickness(mm) | 8 | End cap finish | SSS/PSS/customise |
Top track material | Aluminum 6063-T5 | PVC seal | Optional |
Top track finish | Anodizing matt silver | Lock | Optional |
Roler material | 304 stainless steel | Lacth | Optional |
Customized design exterior frameless bi-fold glass folding door with hardware
Popular modern design large opening double glazed aluminum insulated folding door
We can sell complete set with glass, or only hardware accessories.
Product packaging
Simple Design Interior Glass Sliding Folding Door with 12mm Tempered Glass
Welcome a trial order!
Contact us at any time!
Model No.: GS1000A
Frameless folding sliding door
Brand Name | HM |
Model No. | GS1000A |
System name | Sliding folding door |
Material | Aluminium + Stainless steel |
Finished | Polished and stain |
Glass thickness | 8-12mm single clear tempered glass |
Max. capacity for roller | 45kg |
Installation | Configuration briefness and easy to install |
Package | Standard packaging without any logo, can adjust customers request |
Payment terms | T/T 30% deposit advanced, balanced before shipping |
Delivery time | Usually within 10 days after receiving deposit |
Popular modern design large opening double glazed aluminum insulated folding door
We can sell complete set with glass, or only hardware accessories.
Product packaging
Top Sponsor Listing Folding Doors Folding Factory Make Large Opening Insulated Soundproof Interior Aluminum Glass Bi Folding Narrow Bi Fold Doors
Welcome a trial order!
Contact us at any time!
School sliding movable partition wall folding doors for classrooms | |
Product Name | ECH fordable door system F80 |
Material | Anodized aluminum frames structure with insulation glass and floor and top track system |
Function | Smooth operation for opening and folding ,sound ,heat insolation and water proof |
Package | Strengthen paper carton and plywood case |
Products Advantages
ECH foldable door mechanical parts are all hidden in the profile cavity, with uniform pressure and smoother opening; it solves the problem that most of the ordinary foldign door may not smooth due to the exposed mechanical parts and the ash in the track may damages the pulley. Ou hinge is installed in the profile cavity with better stress, simple appearance and Enhance
Project Cases
